About This Product

Manufacturing Standards: ASME B16.9 – ASME B16.28 – ASME – B16.25

Information:

Fitting Types: 45°/90°/180° LR or SR Elbows, Concentric Reducers, Eccentric Reducers, Equal Tees, Reducing Tees, Caps.
Process: Seamless and Welded
Sizes: 1/2″ to 36″
Schedules: Sch10 up to XXS and heavier
Ends: Beveled or Plain
Availability: Stock and/or Production

Chrome Moly

WP5 / WP9 / WP11 / WP22 / WP91

Nickel Alloys

Alloy 59 / C276 / Alloy 20 / 400 / 600 / 625 / 800H / 825

Stainless Steel

304H / 316H / 317L / 310H / 321 / 410 / Duplex / 254 SMO

Urea grades

25.22.2 /UNS S 31050 / WP310 MoLN / 316L UG / 316LN UG

Titanium

Grade 2 / Grade 7

LR 90 Elbows

Nominal Size	Dim A (inches)	Approximate Weight (lbs)
		STD	Sch 40	Sch 60	XH	Sch 80	Sch 100	Sch 120	Sch 140	Sch 160	XXH
1/2″	1.5	0.1	0.1		0.3	0.3				0.6	0.7
3/4″	1.5	0.2	0.2		0.3	0.3				0.6	0.7
1″	1.5	0.4	0.4		0.5	0.5				0.6	0.8
1-1/4″	1.88	0.6	0.6		0.8	0.8				1	1.4
1-1/2″	2.25	0.8	0.8		1	1				1.8	2
2″	3	1.6	1.6		2	2				3.2	3.9
2-1/2″	3.75	2.9	2.9		4	4				6	6.8
3″	4.5	4.6	4.6		6.3	6.3				10	11.3
4″	6	8.7	8.7		12.5	12.5		15		22	23
5″	7.5	14.4	14.4		20	20		28		33	38
6″	9	24	24		33.5	33.5		44		62	69
8″	12	46	46	58	70	70	85	103	116	122	120
10″	15	86	86	109	109	130	164	201	232	270	232
12″	18	120	129	180	160	210	269	315	365	460	315
14″	21	156	170	270	191	310	371	415	490	563
16″	24	206	262	302	268	420	518	622	735	825
18″	27	256	369	512	318	620	747	872	1005	1130
20″	30	344	498	675	407	840	997	1178	1364	1518
24″	36	483	844	1170	632	1465	1730	2050	2310	2712



SR 90 Elbows

Nominal Size	Dim A (inches)	Approximate Weight (lbs)
		STD	Sch 40	Sch 60	XH	Sch 80	Sch 100	Sch 120	Sch 140	Sch 160	XXH
1/2″
3/4″
1″	1	0.3			0.5	0.5				0.7	0.9
1-1/4″	1.25	0.4			0.7	0.7
1-1/2″	1.5	0.5			0.8	0.8				1.1	1.4
2″	2	0.9			1.5	1.5				2.4	2.8
2-1/2″	2.5	1.8			2.3	2.3				3.5	4.9
3″	3	3			3.8	3.8				5.6	7
4″	4	6			7.8	7.8		10.2		12.5	14
5″	5	9.5			13.5	13.5		17.7		23	26
6″	6	15.5			22.5	22.5		29.6		36	57
8″	8	31		41	46	46	57.8	69	77	81	80
10″	10	55		71	71	86	109	126	151	173	158
12″	12	78	86	118	100	145	179	210	235	283
14″	14	104	118	159	132	210	247	295	345	387
16″	16	118	160	225	160	312	325	431	526	577
18″	18	148	227	310	194	397	507	610	720	810
20″	20	210	332	449	280	575	672	795	960	1067
24″	24	288	558	775	370	961	1147	1465	1731	1940

* Weights are approximate and for estimation purposes only. Weight may differ slightly for each manufacturer depending on the process of production.

45 Elbows

Nominal Size	Dim B (inches)	Approximate Weight (lbs)
		STD	Sch 40	Sch 60	XH	Sch 80	Sch 100	Sch 120	Sch 140	Sch 160	XXH
1/2″	0.63	0.05	0.05		0.15	0.15				0.3	0.35
3/4″	0.75	0.1	0.1		0.15	0.15				0.3	0.35
1″	0.88	0.2	0.2		0.25	0.25				0.3	0.4
1-1/4″	1	0.3	0.3		0.4	0.4				0.5	0.7
1-1/2″	1.12	0.4	0.4		0.5	0.5				0.9	1
2″	1.38	0.8	0.8		1	1				1.6	1.95
2-1/2″	1.75	1.45	1.45		2	2				3	3.4
3″	2	2.3	2.3		3.15	3.15				5	5.65
4″	2.5	4.35	4.35		6.25	6.25		7.5		11	11.5
5″	3.13	7.2	7.2		10	10		14		16.5	19
6″	3.75	12	12		16.75	16.75		22		31	34.5
8″	5	23	23	29	35	35	42.5	51.5	58	61	60
10″	6.25	43	43	54.5	54.5	65	82	100.5	116	135	116
12″	7.5	60	64.5	90	80	105	134.5	157.5	182.5	230	157.5
14″	8.75	78	85	135	95.5	155	185.5	207.5	245	281.5
16″	10	103	131	151	134	210	259	311	367.5	412.5
18″	11.25	128	184.5	256	159	310	373.5	436	502.5	565
20″	12.5	172	249	337.5	203.5	420	498.5	589	682	759
24″	15	241.5	422	585	316	732.5	865	1025	1155	1356

* Weights are approximate and for estimation purposes only. Weight may differ slightly for each manufacturer depending on the process of production.

Tees

Weights are approximate and for estimation purposes only.

Weight may differ slightly for each manufacturer depending on the process of production.

Nominal Size	Dim A (Inches)	Dim B (inches)	Approximate Weight (lbs)
			STD	Sch 40	Sch 60	XH	Sch 80	Sch 100	Sch 120	Sch 140	Sch 160	XXH
1/2″	2	1	0.3	0.3		0.3	0.3				0.6	0.8
3/4″	2.26	1.13	0.4	0.4		0.5	0.5				0.7	1.2
1″	3	1.5	0.9	0.9		1	1				1.1	1.5
1-1/4″	3.78	1.883	1.6	1.6		2	2				2.1	2.3
1-1/2″	4.5	2.25	2.1	2.1		2.8	2.8				3	3.5
2″	5	2.5	3.3	3.3		3.9	3.9				4.5	5.5
2-1/2″	6	3	5.9	5.9		6.7	6.7				7	10
3″	6.78	3.38	7.6	7.6		9	9				12	14
4″	8.28	4.13	12.2	12.2		16	16		20		22	25
5″	9.78	4.88	21.5	21.5		26	26		34		37	40
6″	11.28	5.63	34	34		44	44		54		63	66
8″	14	7	54	54	65	76	76	82	89	98	114	110
10″	17	8.5	88	88	110	110	163	187	218	246	265
12″	20	10	126	139	187	165	210	318	361	412	389
14″	22	11	159	195	279	225	335	402	445	510	561
16″	24	12	220	265	312	265	452	536	618	704	768
18″	27	13.5	295	360	490	358	650	788	864	995	1345
20″	30	15	363	478	657	450	890	1005	1136	1310	1536
24″	34	17	515	1080	1390	625	1525	1627	1856	2150	2600

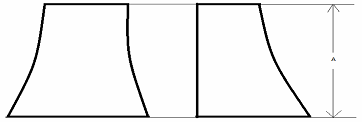

REDUCERS CONCENTRIC & ECCENTRIC

Nominal Size 1	Nominal Size 2	Dim A (inches)	Approximate Weight (lbs)
			STD	Sch 40	Sch 60	XH	Sch 80	Sch 100	Sch 120	Sch 140	Sch 160	XXH
3/4″	1/2″	1.5	0.1	0.1		0.2	0.2				0.2	0.3
1″	3/4″	2	0.2	0.2		0.3	0.3				0.4	0.5
	1/2″	2	0.2	0.2		0.3	0.3				0.3	0.4
1-1/4″	1″	2	0.3	0.3		0.4	0.4				0.6	0.7
	3/4″	2	0.3	0.3		0.4	0.4				0.5	0.6
	1/2″	2	0.3	0.3		0.3	0.3				0.4	0.6
1-1/2″	1-1/4″	2.5	0.5	0.5		0.7	0.7				0.9	1.2
	1″	2.5	0.5	0.5		0.6	0.6				0.8	0.9
	3/4″	2.5	0.4	0.4		0.5	0.5				0.7	0.8
2″	1-1/2″	3	0.8	0.8		1.1	1.1				1.5	1.9
	1-1/4″	3	0.7	0.7		1.0	1.0				1.4	1.8
	1″	3	0.7	0.7		0.9	0.9				1.3	1.4
	3/4″	3	0.6	0.6		0.8	0.8				1.2	1.3
2-1/2″	2″	3.5	1.4	1.4		1.9	1.9				2.6	3.3
	1-1/2″	3.5	1.2	1.2		1.6	1.6				2.2	2.9
	1-1/4″	3.5	1.2	1.2		1.6	1.6				2.0	2.8
	1″	3.5	1.1	1.1		1.4	1.4				1.9	2.4
3″	2-1/2″	3.5	2.0	2.0		2.6	2.6				3.6	4.7
	2″	3.5	1.6	1.6		2.2	2.2				3.2	4.0
	1-1/2″	3.5	1.5	1.5		2.0	2.0				2.8	3.6
	1-1/4″	3.5	1.4	1.4		1.9	1.9				2.6	3.5
4″	3″	4	3.1	3.1		4.2	4.2				6.1	7.7
	2-1/2″	4	2.8	2.8		3.8	3.8				5.4	6.9
	2″	4	2.4	2.4		3.3	3.3				5.0	6.1
	1-1/2″	4	2.3	2.3		3.1	3.1				4.6	5.7
5″	4″	5	5.3	5.3		7.5	7.5		9.6		11.6	13.8
	3″	5	4.6	4.6		6.5	6.5				9.9	11.9
	2-1/2″	5	4.3	4.3		5.9	5.9				9.0	10.9
	2″	5	3.8	3.8		5.4	5.4				8.4	9.9
6″	5″	5.5	7.7	7.7		11.3	11.3		14.5		18.0	21.0
	4″	5.5	6.8	6.8		10.0	10.0		12.7		15.6	18.5
	3″	5.5	6.1	6.1		8.9	8.9				13.7	16.5
8″	6″	6	11.9	11.9		18.0	18.0		24.3		30.0	31.4
	5″	6	10.8	10.8		16.1	16.1		22.0		26.9	27.8
	4″	6	9.8	9.8		14.6	14.6		19.9		24.3	25.0
10″	8″	7	20.2	20.2	26.4	28.6	31.5	37.4	43.8	50.2	55.6	51.5
	6″	7	17.4	17.4		24.3	27.2		36.7		47.0	45.9
	5″	7	16.1	16.1		22.0	24.9		34.0		43.4	41.7
	4″	7	15.0	15.0		20.4	23.2		31.6		40.3	38.4
12″	10″	8	30.0	31.4	42.7	40.1	51.1	61.5	71.7	81.3	92.1
	8″	8	26.1	27.4	36.3	36.3	44.0	52.8	62.1	69.2	78.4
	6″	8	22.9	24.2		31.4	39.1		54.0		68.6
14″	12″	13	56.5	63.4	85.8	74.6	105.6	129.1	149.8	168.0	189.4
	10″	13	51.5	56.3	75.8	68.8	92.5	112.7	130.2	148.7	165.2
	8″	13	45.1	49.9	65.4	62.6	81.1	98.6	114.7	129.0	143.0
16″	14″	14	68.4	85.4	112.4	90.4	141.7	172.6	200.4	230.0	253.6
	12″	14	65.5	79.6	105.5	86.5	131.5	158.9	185.6	212.1	236.8
	10″	14	60.2	72.0	94.7	80.3	117.4	141.2	164.5	191.4	210.7
18″	16″	15	83.3	117.3	153.7	110.2	192.4	233.2	273.1	311.5	346.4
	14″	15	78.3	105.2	139.6	103.6	173.3	212.0	247.1	278.0	311.3
	12″	15	75.2	99.0	132.2	99.4	162.4	197.2	231.2	258.9	293.3
20″	18″	20	124.4	190.0	254.1	164.8	316.8	387.1	450.9	513.2	573.6
	16″	20	117.8	171.7	228.5	155.9	288.2	351.1	407.7	471.1	520.8
	14″	20	111.1	155.6	209.7	147.0	262.7	322.8	373.0	426.5	474.0
24″	20″	20	144.5	245.6	337.6	191.5	421.6	520.1	605.4	687.5	768.3
	18″	20	137.8	230.2	314.1	182.6	390.0	479.9	561.8	631.7	709.4
	16″	20	131.1	211.9	288.5	173.7	361.3	443.9	518.7	589.5	656.6

* Weights are approximate and for estimation purposes only. Weight will differ slightly for each manufacturer depending on the process of production.

Caps

Nominal Size	Dim A (inches)	Dim A (inches)	Approximate Weight (lbs)
	Thinner than XH	XH and heavier	STD	Sch 40	Sch 60	XH	Sch 80	Sch 100	Sch 120	Sch 140	Sch 160	XXH
1/2″	1	1	0.1	0.1		0.1	0.1				0.3	0.5
3/4″	1	1	0.1	0.1		0.1	0.1				0.3	0.7
1″	1.5	1.5	0.2	0.2		0.3	0.3				0.4	1
1-1/4″	1.5	1.5	0.3	0.3		0.4	0.4				0.5	1.5
1-1/2″	1.5	1.5	0.4	0.4		0.5	0.5				0.6	2.5
2″	1.5	1.75	0.6	0.6		0.8	0.8				1.3	3
2-1/2″	1.5	2	0.9	0.9		1	1				1.8	4
3″	2	2.5	1.5	1.5		1.8	1.8				2.9	6
4″	2.5	3	2.5	2.5		3.3	3.3		6		6	9
5″	3	3.5	4.7	4.7		5.5	5.5		9		10	14
6″	3.5	4	6.5	6.5		10	10		13		15	18
8″	4	5	11.8	11.8	15	17	17	19	24	26	31	26
10″	5	6	22	22	27	27	30	34	46	53	57
12″	6	7	30.6	35.5	44	38	62	74	82	90	95
14″	6.5	7.5	37	43.5	55	47	75	102	146	179	200
16″	7	8	40	53.5	75	55	86	133	187	229	297
18″	8	9	54	117	154	72	190	254	317	423
20″	9	10	77	129	182	86	210	247	340	395
24″	10.5	12	86	208	285	129	337	485	562	697

* Weights are approximate and for estimation purposes only. Weight will differ slightly for each manufacturer depending on the process of production.
